Due to the sash’s position relative to the frame, we offer models: Flush i Storm-proof.

Casement Flush is specially designed to replicate a period window while incorporating the most moder operation and security features. Often referred to as a conservation window, the design is characterised by a leaf that sits within the frame to create a flush finish externatlly.

Stormproof	Flush

Casement Storm-proof is the most frequently chosen window design in the UK. It reflects a proven ability to withstand exposure to adverse weather conditions. The leaf stands out boldly from the frame, giving excellent gasket compression and the best weather rating available.

We offer depth of sash: 56 or 68 mm.

• in the 56 mm version, a double glazed with a thickness of 24 mm
• in the 68 mm version, a triple glazed with a thickness of 36 mm

Stormproof 56	Flush 56	Stormproof 68	Flush 68

Depending on the demand, we also offer external window sills. Just tell us how much is to put the window sill outside the window frame and what width it should have.

Stormproof 56	Flush 56	Stormproof 68	Flush 68

There are also available additional drip caps on the frame, recommended especially when vents are required

standard	option	option

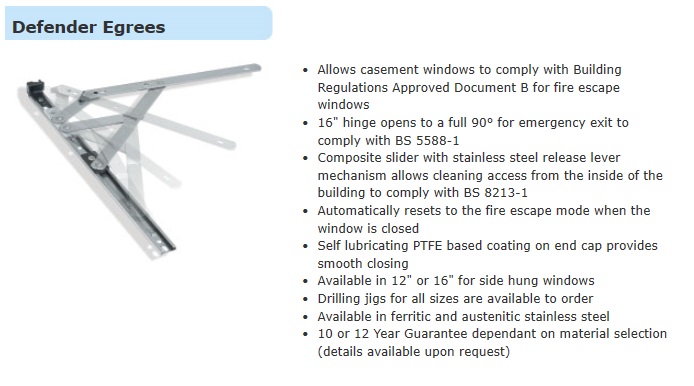

Ironmongery

also avaiable

twarcia.

butt hinges	opening restrictor

Vents

Window triclevents are devices mounted in a window that allow air to be supplied to rooms in which gravitational ventilation, mechanical exhaust or hybrid ventilation is used.
Even when the windows are tightly closed, the diffusers allow you to supply fresh air continuously, in the amount consistent with the applicable regulations.

Sills

standard – none
option following sills are available

Bars

standard – none
option Following bars are available

		glue on 20 | 25 mm standard 20 mm available
		vienna bars 20 | 25 mm standard 20 mm available
		construction bar, possible but NA
		between glass pane: available 8 | 18 | 26 | 45 mm

Shapes

different shapes are available: both rectangulars and arcs

Standard equipment includes

Profile

• Depth of sash 56 mm (option 68 mm)
• The depth of frame building can be found in the technical data
• Profile with a traditional line (outside imitating putty, decorative inside)
• Wood: Pine, meranti or oak wood
• Two gaskets
• optional external window sill

Glass unit

• Double glazing 4 /16Ar/4LE  for 56 mm (for triple glazing for 68 mm)
• U_g = 1.1 W/m²K
• Filled with Argon
• The thickness of the glass unit: 24 mm for 56 mm (and 36 mm for 68 mm)

Ironmongery

• The fitting provides opening to the outside
• Scissor hinges for easy clean window

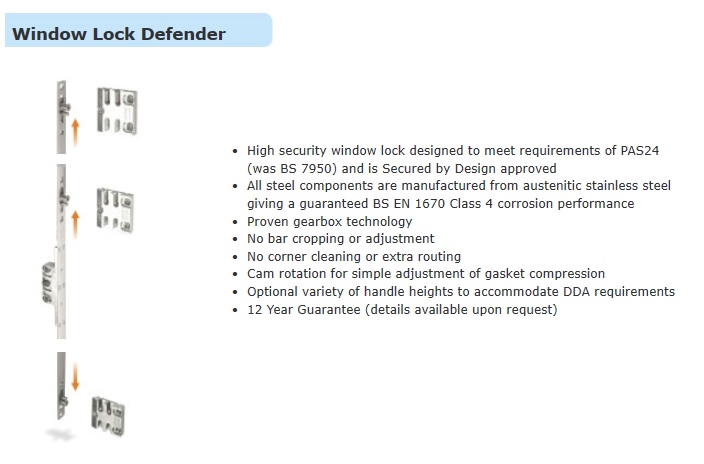

• Multi-point locking system

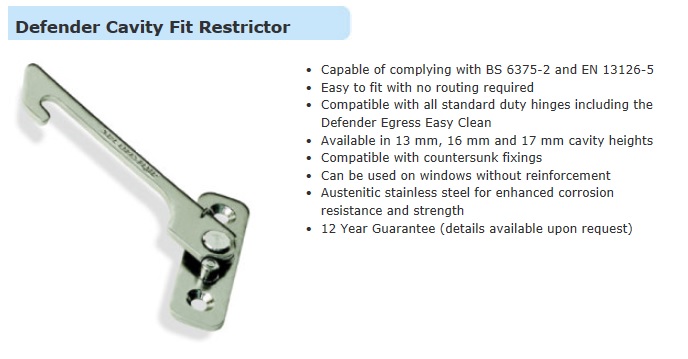

• Optionally available keepers for microventilation or opening restrictor

Handle

• Made of metal
• Ergonomic shape
• With a button and key
• Standard color: white
  Optional colors: satin chrome, polish chrome, brass, black

Joinery is painted with water base, ecological, transparent or opaque Teknos varnishes. As standard, the inside and outside color are identical. We paint with coating paints and on the so-called stains, or paints that make the wood structure visible. The basic covering colors are white (according to RAL 9016) or brown (RAL 8017). Others are available for a small additional fee. We do not use surcharges for orders for a larger amount. The covering color should be determined according to the RAL or NCS template. In special cases, the colors are selected individually.

We present the stain colors below, but the actual coloration may differ from that of the monitor. Stain colors are divided into price groups and are presented below; on every type of wood, the same stain color is slightly different. It is possible to paint in a way that a different color is inside and a different one outside. This method of painting is called bicolor. It is required to specify which color to be on each side.

Cover colours

in basic price: outside and inside identical colour: white or brown

also avaiable

according to RAL	according to NCS

Stain colour

For the production of windows, we use laminated glued timber. Below are the basic grades of the wood we use with a short characteristic: pine MICRO (finger-jointed), pine NATUR (solid), meranti, oak. Larch, spruce and other types of wood are available for individual orders.

Pine NATUR (solid)	Meranti	Oak
Pine MICRO
Accoya

Pine NATUR and MICRO – technical properties of wood

• density after cutting – 750-820-850 kg/m³
• density at humidity 12-15% – 330-510-890 kg/m³,
• density used for the production 420 kg/m³ lub więcej
• origin: central, northern and eastern Europe
• painted with covering paints (RAL) smooth as a table

Meranti – technical properties of wood

• density in the green state: 650 -850 kg/m³
• density at humidity 12%: 390 -560 – 760 kg/m³
• density used for the production 450 kg/m³ lub więcej
• origin: South Asia and South-East Malaysia, Indonesia
• painted with coating paints (RAL) exposes porosity and wood structure

Oak – technical properties of wood

• density after cutting – 900-1150 kg/m³,
• density at humidity 12-15%- 430-690-960 kg/m³,
• density used for the production 650 kg/m³ or more
• origin: Europe, Asia Minor, Scandinavia, Finland, Spain, France,
• painted with coating paints (RAL) exposes porosity and wood structure

Pine

Meranti

Oak

Accoya

Accoya® is wood, but not like you know most types of wood. This very innovative wood is treated with the acetylation process, a advances patented technology, which guarantees 50 years of use above the ground,  and 25 years in soil or fresh water. The application of acetylation to fast-growing coniferous wood, a wood modification process that has been studied by scientist worldwide for more than 80 years, produces the the highly sustainable Accoya®. This way of woodwork doubles the lof of coatings and this makes the  performance of this acrylic wood extremely reliable

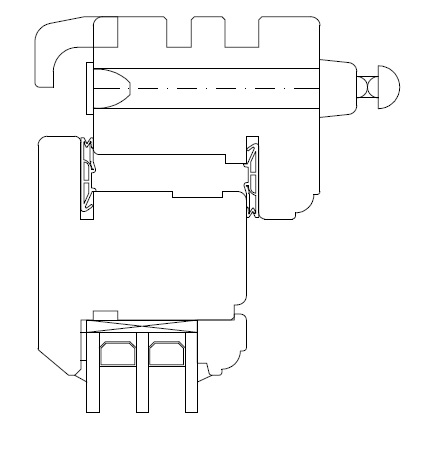

Below are technical cross-sections of the available solutions. Click to view details

Casement Flush

Casement Flush_sash 56 frame 80_double glazed

Casement Flush_sash 68 frame 92_triple glazed

Casement Stormproof

Casement Stormproof_sash 56 frame 62_double glazed

Casement Stormproof_sash 68 frame 74_triple glazed
