DC series door is a classic frame door with the depth of the building 68, 78, 92 mm. The Classic line ideally corresponds with inward opening wooden windows both with Classic line and with the Eco line. Glazing beads and the curve of the profile complement each other in an ideal whole.
Among the rails of classic DC doors we distinguish the finish: Softline and Retro – differences below:
 Softline |  Retro |
We offer the door in two wing widths: 136 mm as a standard solution and 106 mm
We present the door traditional designs (DC) below.
Single-sash door
 DC-1-02 |  DC-1-03 |  DC-1-04 |  DC-1-05 |  DC-1-06 |  DC-1-07 |
 DC-1-08 |  DC-1-09 |  DC-1-10 |  DC-1-11 |  DC-1-13 |  DC-1-14 |
 DC-1-15 |  DC-1-16 |  DC-1-17 |  DC-1-18 |  DC-1-19 |  DC-1-20 |
 DC-1-21 |  DC-1-24 |  DC-1-25 |  DC-1-26 |
Double sash door
DC-2-12 |  DC-2-23 |  DC-2-28 |  DC-2-31 |
The Door + Fixedlight
 DC-3-01 |  DC-3-27 |  DC-3-29 |
 DC-3-32 |  DC-3-33 | |
if you have not found the desired pattern, send us a photo or a sketch and we will answer if we can do it.
The door can be filled with panels or panes (windows and their types can be found below as accessories).
Panels
You can choose a flat panel, an application panel, a milled panel or an application and milling panel. In addition, on request, we make reinforced panels, i.e. the inner panel is a reinforcing plate.
Below are examples of panels
  flat panel |   panel with application |   flat panel with one side V-grooves |   panel with application and with one side V-grooves |
The standard equipment is 32 mm high thresholds, ensuring the continuity of the main gasket on the frame and at the threshold, ensure high tightness confirmed by tests. A 20 mm high threshold is also available.
If necessary, the possibility of mounting the threshold extension (from the bottom) as well as the application to non-threshold systems so-called automatic threshold (called telescopic or falling gasket).
  32 mm – standard – two seals |   20 mm – one seal only |   no threshold – automatic seal |
Fittings are a very important element of the door equipment. While some windows open 1-2 times a year (during their washing) the door can be opened up to several times within an hour.
Fittings are responsible for easy use and safety, expressed by resistance to burglary. We use hinges adjustable in three dimensions. Depending on the door leaf (136 mm or 106 mm) we use Simonswerk Baka Protect 3D hinges up to 160 kg or SFS easy 3D.
for 136 mm wings we use Simonswerk Baka Protect 3D
 Simonswerk Baka Protect 3D |
As standard, the hinges are mounted on the door hinges, which we supply in the color of door handles, either in white or brown.
 biały |  brąz |  srebrny |  MATT_GEBUERSTET |
casings can have a special shape
 basic |  soft |  ZK |
The standard of fittings in wooden doors are good quality aluminum handles. We offer door-handle and handle solutions inside, and on the outside, a knob. There are also solutions that have a handle inside and only a rosette with a cylinder on the outside.
The standard colors of the handles are: White (9016), Brown (8017), Satin Chrom (F1), Old Gold (F4), Titanium (F9).
Handle-Handle
 white |  brown |  satin chrom – F1 |  old gold – F4 |  titanium – F9 |
Handle-Knob
 white |  brown |  satin chrom – F1 |  old gold – F4 |  titanium – F9 |
The lock in the form of a bolt bar automatically keep door leaf in three points each time. This prevents warping of the door leaves even in conditions of high humidity and exposed to sun exposure.
The locking mechnism is equipped with one A-cylinder cylinder with a set of three keys.
 automatic bolts |  class A cylinder |
Available safety options:
Shapes
Standard equipment includes
Profile
Threshold
Direction of opening to choose from
Fulfillment
Ironmongery
Handle
We offer every door either as an opening to the inside or outside. The customer is required to specify the direction and the opening side.
 Right, open in | |||
 Right, open out |

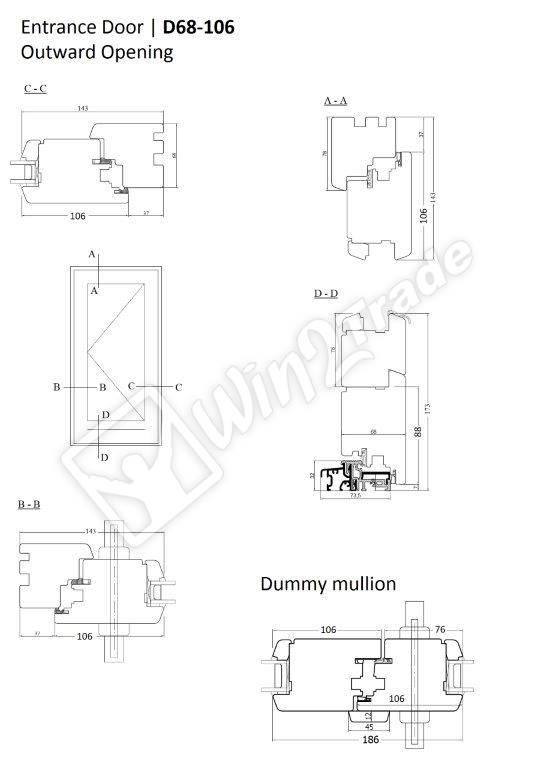

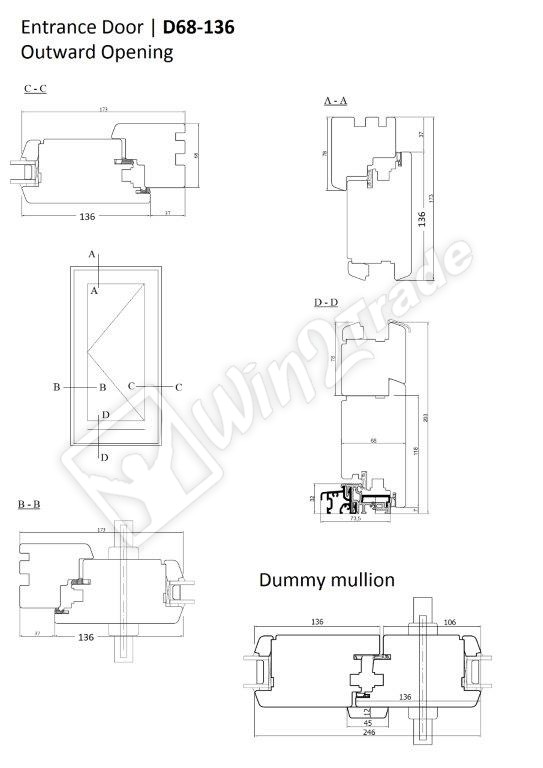

Section drawings of inward and outward opening doors: with frame of door leaf 136 mm as a standard solution and with 106 mm as an economical version.
Joinery is painted with water base, ecological, transparent or opaque Teknos varnishes. As standard, the inside and outside color are identical. We paint with coating paints and on the so-called stains, or paints that make the wood structure visible. The basic covering colors are white (according to RAL 9016) or brown (RAL 8017). Others are available for a small additional fee. We do not use surcharges for orders for a larger amount. The covering color should be determined according to the RAL or NCS template. In special cases, the colors are selected individually.
We present the stain colors below, but the actual coloration may differ from that of the monitor. Stain colors are divided into price groups and are presented below; on every type of wood, the same stain color is slightly different. It is possible to paint in a way that a different color is inside and a different one outside. This method of painting is called bicolor. It is required to specify which color to be on each side.
Cover colours
in basic price: outside and inside identical colour: white or brown
 |  | ||
also avaiable
 according to RAL |  according to NCS |
Stain colour
Standard 1
Standard 2
Standard 3
Standard 1
Standard 2
Standard 1
Standard 2
The door can be filled with panels or panes (windows and their types can be found below as accessories).
Panels
You can choose a flat panel, an application panel, a milled panel or an application and milling panel. In addition, on request, we make reinforced panels, i.e. the inner panel is a reinforcing plate.
Below are examples of panels
flat panel | panel with application | flat panel with one side V-grooves | panel with application and with one side V-grooves |
Glass units
For the doors made of this profile, the thickness of the glazing unit must be 24 -36 mm (for 68 mm).
There are available 2-pane and 3 pane (2-chamber) glass units with standard or special glass pane. The number of chambers influences the thermal insulation coefficient of the pane (Ug)
 4/16A/4LE Ug =1.1 W/m2K |  4/12A/4/12A/4LE Ug =0.7 W/m2K |
safety glass includes both toughened glass (ESG) and laminated glass (VSG).
 ESG (touhen glass after breaking) |  VSG – P4 44.4 |  VSG – P2 44.2 |  VSG – O2 33.1 |
non-transparent glass, providing comfort, mounted in eg bathrooms – matte and ornamental
 matt |  cathedral |  chinchila |  crepi |
 mastercare |  kora |  delta |
sound reduction glass – they provide more acoustic insulation required for buildings located in places with high noise caused by, for example, transport traffic
solar glass, so-called reflexes or Antisole
The standard equipment is 32 mm high thresholds, ensuring the continuity of the main gasket on the frame and at the threshold, ensure high tightness confirmed by tests. A 20 mm high threshold is also available.
If necessary, the possibility of mounting the threshold extension (from the bottom) as well as the application to non-threshold systems so-called automatic threshold (called telescopic or falling gasket).
32 mm – standard – two seals | 20 mm – one seal only | no threshold – automatic seal |
Fittings are a very important element of the door equipment. While some windows open 1-2 times a year (during their washing) the door can be opened up to several times within an hour.
Fittings are responsible for easy use and safety, expressed by resistance to burglary. We use hinges adjustable in three dimensions. Depending on the door leaf (136 mm or 106 mm) we use Simonswerk Baka Protect 3D hinges up to 160 kg or SFS easy 3D.
for 136 mm wings we use Simonswerk Baka Protect 3D
Simonswerk Baka Protect 3D |
As standard, the hinges are mounted on the door hinges, which we supply in the color of door handles, either in white or brown.
biały | brąz | srebrny | MATT_GEBUERSTET |
casings can have a special shape
basic | soft | ZK |
for 106 mm wings we use OTLAV
hinge |  hinge installed |
The standard of fittings in wooden doors are good quality aluminum handles. We offer door-handle and handle solutions inside, and on the outside, a knob. There are also solutions that have a handle inside and only a rosette with a cylinder on the outside.
The standard colors of the handles are: White (9016), Brown (8017), Satin Chrom (F1), Old Gold (F4), Titanium (F9).
Handle-Handle
white | brown | satin chrom – F1 | old gold – F4 | titanium – F9 |
Handle-Knob
white | brown | satin chrom – F1 | old gold – F4 | titanium – F9 |
The lock in the form of a bolt bar automatically keep door leaf in three points each time. This prevents warping of the door leaves even in conditions of high humidity and exposed to sun exposure.
The locking mechnism is equipped with one A-cylinder cylinder with a set of three keys.
automatic bolts | class A cylinder |
Available safety options:
Available handrails options:
Straight handle 45 degrees – stainless steel
 | handle diameter 32 mm bracket diameter 25 mm brushed matte stainless steel fastening element required
|
Straight handle – stainless steel
 | handle diameter 32 mm bracket diameter 25 mm brushed matte stainless steel fastening element required
|
Semi-circular handle – stainless steel
 | handle diameter 32 mm brushed matte stainless steel fastening element required
|
Bent handle – stainless steel
 | handle diameter 32 mm brushed matte stainless steel fastening element required
|
Arched handle – stainless steel
 | handle diameter 32 mm bracket diameter 25 mm brushed matte stainless steel fastening element required
|
Triangle handle – stainless steel
 | handle diameter 32 mm brushed matte stainless steel fastening element required
|
Fastening element (must be selected)
 |  |  |  |
For the production of windows, we use laminated glued timber. Below are the basic grades of the wood we use with a short characteristic: pine MICRO (finger-jointed), pine NATUR (solid), meranti, oak. Larch, spruce and other types of wood are available for individual orders.
 Pine NATUR (solid) |  Meranti |  Oak |
 Pine MICRO | ||
Pine NATUR and MICRO – technical properties of wood
Meranti – technical properties of wood
Oak – technical properties of wood
 Pine |  Meranti |  Oak |
